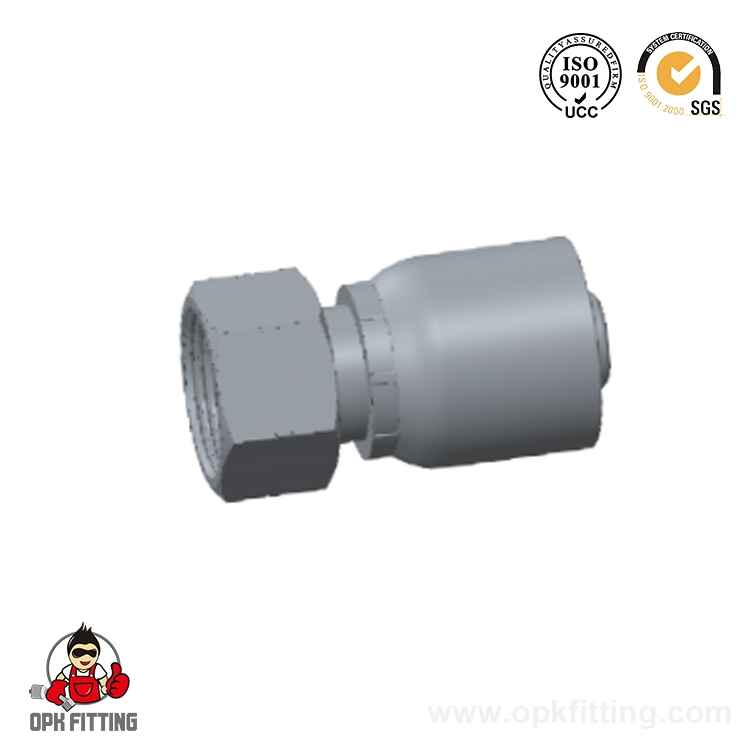

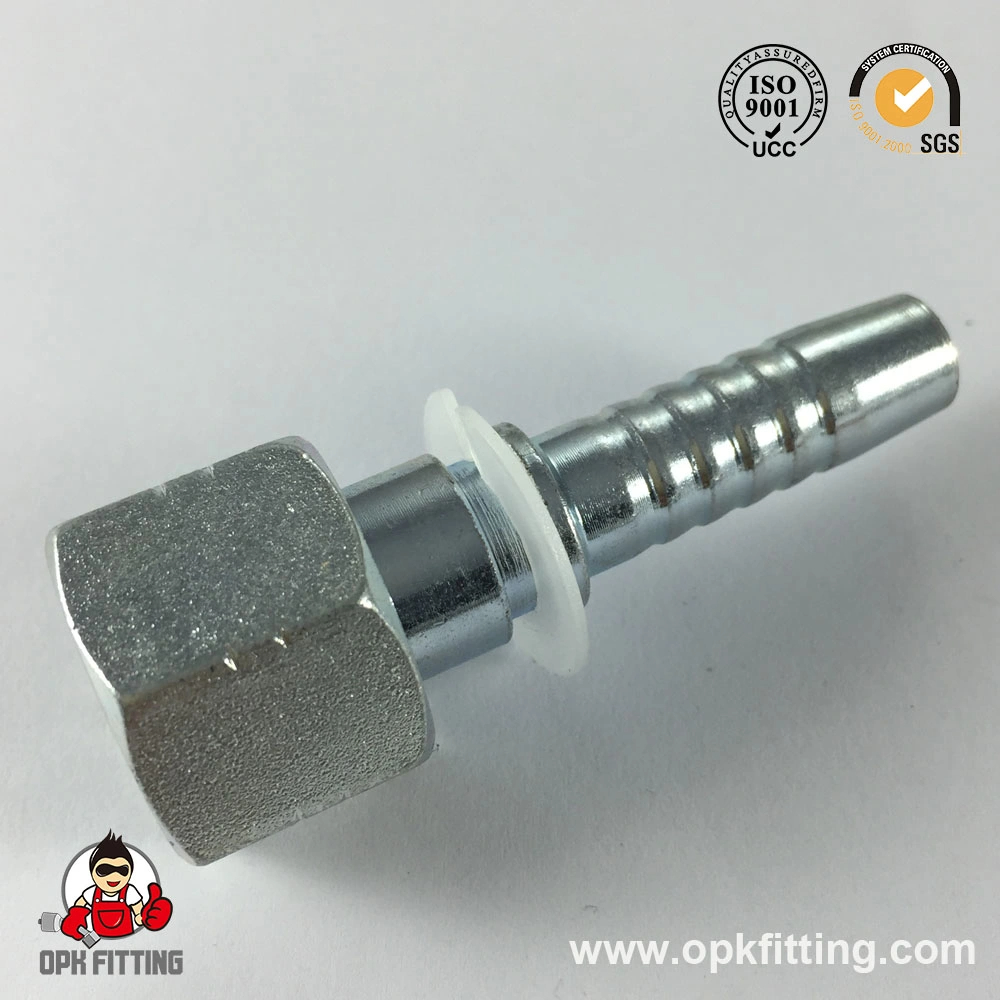

24211 ORFS Female Flat Seat

Name: 24211 ORFS Female Flat Seat
Rating: 5 (99 reviews)

Product Description
Product name: ONE-PIECE Hose Fittings
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：26711 JIC Female 74° Cone Seat
다음：15611 NPT Male

Specification
Contact Us

Standard:	DIN, GB, JIS
Material:	Stainless Steel
Connection:	Male
Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon
HS:	73072900

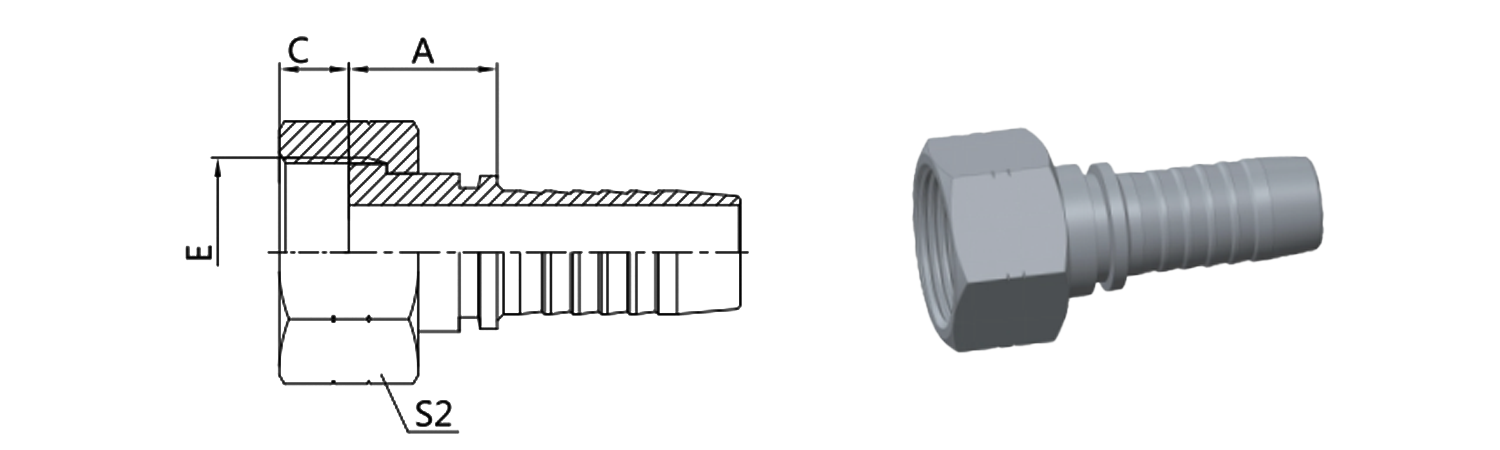

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
24211-04-04	9/16"X18	6	04	22.5	8.5	19
24211-04-04T	9/16"X18	06	04	22.5	8.5	19
24211-04-05	9/16"X18	8	05	22.5	8.5	19
24211-04-06	9/16"X18	10	06	22.5	8.5	19
24211-06-04T	11/16"X16	6	04	23.5	10	22
24211-06-05T	11/16"X16	8	05	23.5	10	22
24211-06-06	11/16"X16	10	06	25.5	10	22
24211-06-06T	11/16"X16	10	06	25.5	10	22
24211-06-08	11/16"X16	12	08	26	10	22
24211-08-05T	13/16"X16	8	05	25.5	11	27
24211-08-06T	13/16"X16	10	06	25.5	11	27
24211-08-08	13/16"X16	12	08	28	11	27
24211-08-08T	13/16"X16	12	08	26.5	11	27
24211-08-10	13/16"X16	16	10	29	11	27
24211-10-08T	1"X14	12	08	28.5	12	30
24211-10-10	1"X14	16	10	33	13.5	30
24211-10-10T	1"X14	16	10	28.5	12	30
24211-10-12	1"X14	20	12	33.5	13.5	30
24211-12-08T	1.3/16"X12	12	08	28.5	13	36
24211-12-10T	1.3/16"X12	16	10	30	13	36
24211-12-12	1.3/16"X12	20	12	35	15	36
24211-12-12T	1.3/16"X12	20	12	30	13	36
24211-12-16	1.3/16"X12	25	16	36	15	36
24211-16-12T	1.7/16"X12	20	12	32	12	41
24211-16-14T	1.7/16"X12	22	14	35	14.8	41
24211-16-16T	1.7/16"X12	25	16	36	12	41
24211-16-20	1.7/16"X12	32	20	39.5	14.8	41
24211-20-16T	1.11/16"X12	25	16	34.5	15	50
24211-20-20T	1.11/16"X12	32	20	37	13	50
24211-20-20W	1.11/16"X12	32	20	42.5	15	50
24211-20-24W	1.11/16"X12	40	24	42.5	15	50
24211-24-20T	2"X12	32	20	36	14	60
24211-24-24T	2"X12	40	24	36	14	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 24212-xx-xx.
